Introduction of Peanut Butter Machine
Peanut butter making machine combines various properties of homogenizer, ball mill, three-roller, shearing machine, mixer, etc. It has superior effects of superfine pulverization, dispersing emulsification, homogenization and mixing. Through the different movements of the stator and the relative movement of the rotor under high-speed rotation, when the material to be processed passes the adjustable weight of the stator and rotor under the action of self-weight, gas pressure and centrifugal force, it receives strong shearing force and friction. The combined force of impact force, high-frequency vibration, etc., is effectively crushed, dispersed and emulsified and mixed, and the finished product has a particle size of 2-50 microns. Homogenization is higher than 90%.
Wide Application
Peanut butter, sesame butter, almond butter, cocoa butter, sunflower seed paste, walnuts paste, pepper paste, tomato paste
Features

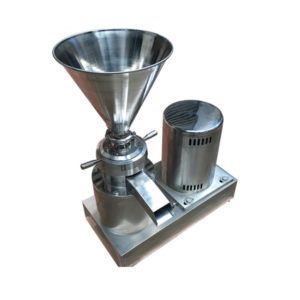

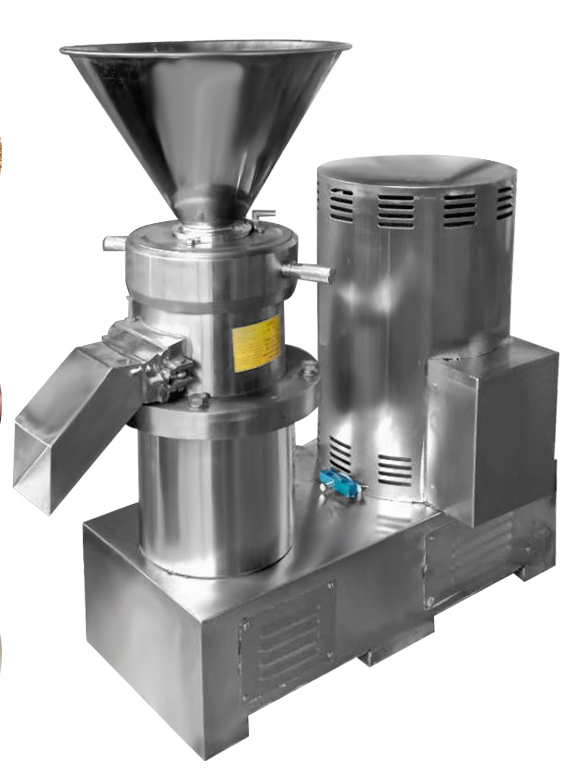

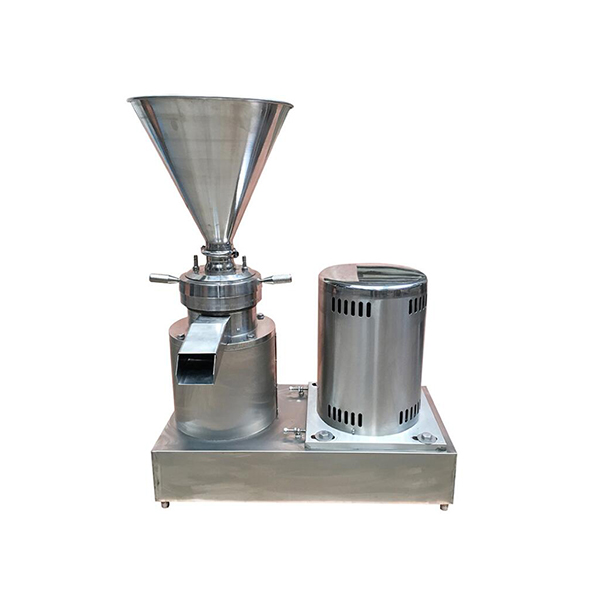

Peanut Butter Making Machine
Our own developed and improved peanut butter machine features in features in small size, easy to move, convenient to operate, low noise, high efficient, fine grinding, low temperature rise.
it is an ideal grinder to make peanut butter, sesame butter, almond butter, cocoa butter, sunflower seed paste, walnuts paste, pepper paste, tomato paste, chili paste and so on.
Our company specializes in research, development and produce peanut butter machines. We manufacture and supply all kinds of peanut processing equipment, No matter if you are new to start peanut butter production or upgrade to expand existing equipment, we design and provide turn key solution of peanut butter production line according to customer’s capacity and heating source.

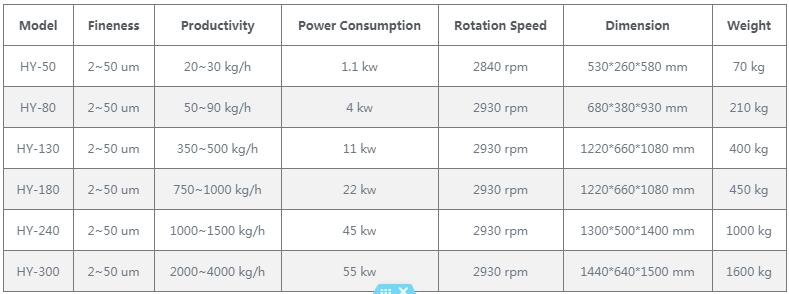

Peanut Butter Machine Technical Specification
| Model | Fineness | Productivity | Power Consumption | Rotation Speed | Dimension | Weight |
|---|---|---|---|---|---|---|
HY-50 | 2~50 um | 20~30 kg/h | 1.1 kw | 2840 rpm | 530*260*580 mm | 70 kg |
HY-80 | 2~50 um | 50~90 kg/h | 4 kw | 2930 rpm | 680*380*930 mm | 210 kg |
HY-130 | 2~50 um | 350~500 kg/h | 11 kw | 2930 rpm | 1220*660*1080 mm | 400 kg |
HY-180 | 2~50 um | 750~1000 kg/h | 22 kw | 2930 rpm | 1220*660*1080 mm | 450 kg |
HY-240 | 2~50 um | 1000~1500 kg/h | 45 kw | 2930 rpm | 1300*500*1400 mm | 1000 kg |
HY-300 | 2~50 um | 2000~4000 kg/h | 55 kw | 2930 rpm | 1440*640*1500 mm | 1600 kg |
1. Hopper
2. Water inlet
3. Water outlet
4. O-ring
5. Cap screw
6. Seals gasket
7. Fixing ring
8. Seals gasket
9. Adjustment ring
10. Seal gasket
11. Stator bracket
12. O-ring
13. O-ring
14. Stator assembly
15. Peanut Butter Grinder body
16. Stop screw
17. Stop scree nut
18. Socket head cap screws
19. Spring washer
20. Guide pin
