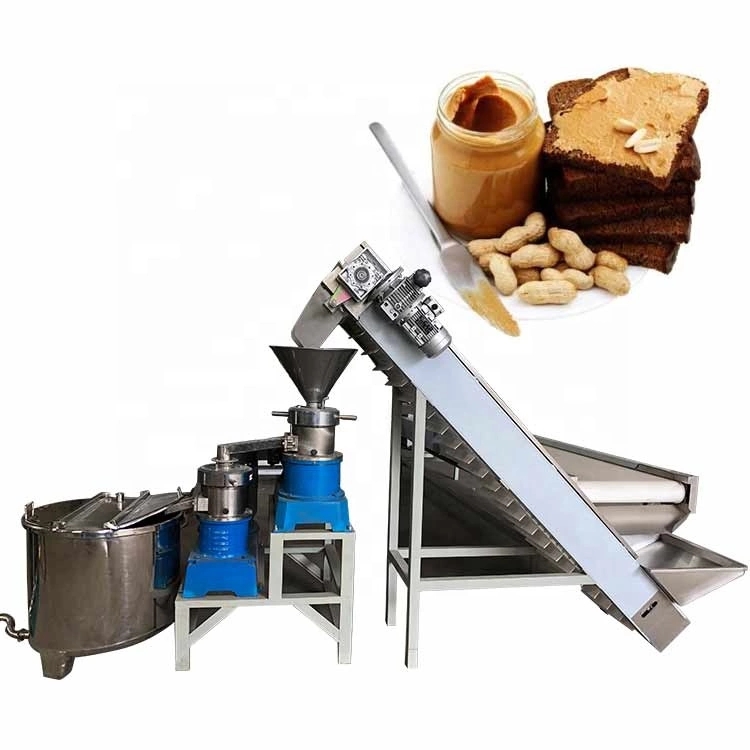

Bucket elevator is suitable for lifting from low to high. After the peanuts are put into the hopper through the vibrating feeder, the machine will automatically run continuously upward. The conveying speed can be adjusted according to the conveying peanut amount, and the lifting height can be adjust as needed. The PP non-toxic hopper makes this bucket elevator more widely used. Besides to be used in peanut butter production line, it also widely used to lifting feeding of food, medicine, chemical industry products, screws, nuts and other products. The bucket elevator can be controlled by the packaging machine signal recognition to automatically start and stop the machine.

Bucket elevator is a continuous conveying machine that uses a series of hoppers that are evenly fixed to the endless traction member to lift the material vertically. Divided into three types of ring chain, plate chain and belt.

1. The bucket elevator has a small driving power, and adopts inflow-type feeding, inductive discharge, and large-capacity hopper-intensive layout. When the material is lifted, there is almost no return and excavation, so the invalid power is small.
2.The bucket hoist has a wide range of lifting.This kind of hoist has less requirements on the type and characteristics of the material, which can not only improve the general powdery and small granular materials, but also the materials with greater sharpness. Good sealing, Less environmental pollution.
3. The bucket elevator has good operation reliability, and advanced design principles and processing methods ensure the reliability of the entire machine operation, and the failure-free time exceeds 20,000 hours. High lifting height. The hoist runs smoothly, so it can reach a high lifting height.
4. The bucket elevator has a long service life, and the feeding of the bucket elevator adopts an inflow type. There is no need to use a bucket to dig the material, and squeeze and collision between materials rarely occur. This machine is designed to ensure that peanuts are rarely scattered during feeding and discharging, reducing mechanical wear.
The working principle of the bucket elevator in the peanut butter production line is: the hopper lifts the peanuts from the storage below, and as the conveyor belt or chain is lifted to the top, it goes down after bypassing the top wheel. Into the receiving tank. The transmission belt of the bucket elevator with transmission is generally a rubber belt, which is installed on the lower or upper driving roller and the upper and lower redirecting roller. Chain-driven bucket elevators are generally equipped with two parallel transmission chains, a pair of transmission sprocket wheels on the top or bottom, and a pair of redirecting sprocket wheels on the bottom or top. Bucket elevators are generally equipped with an organic shell to prevent dust from flying in the bucket elevator
